TriTrace
Transport control tower that fuses three independent location sources and flags any pair that diverges past 500 metres.
Overview

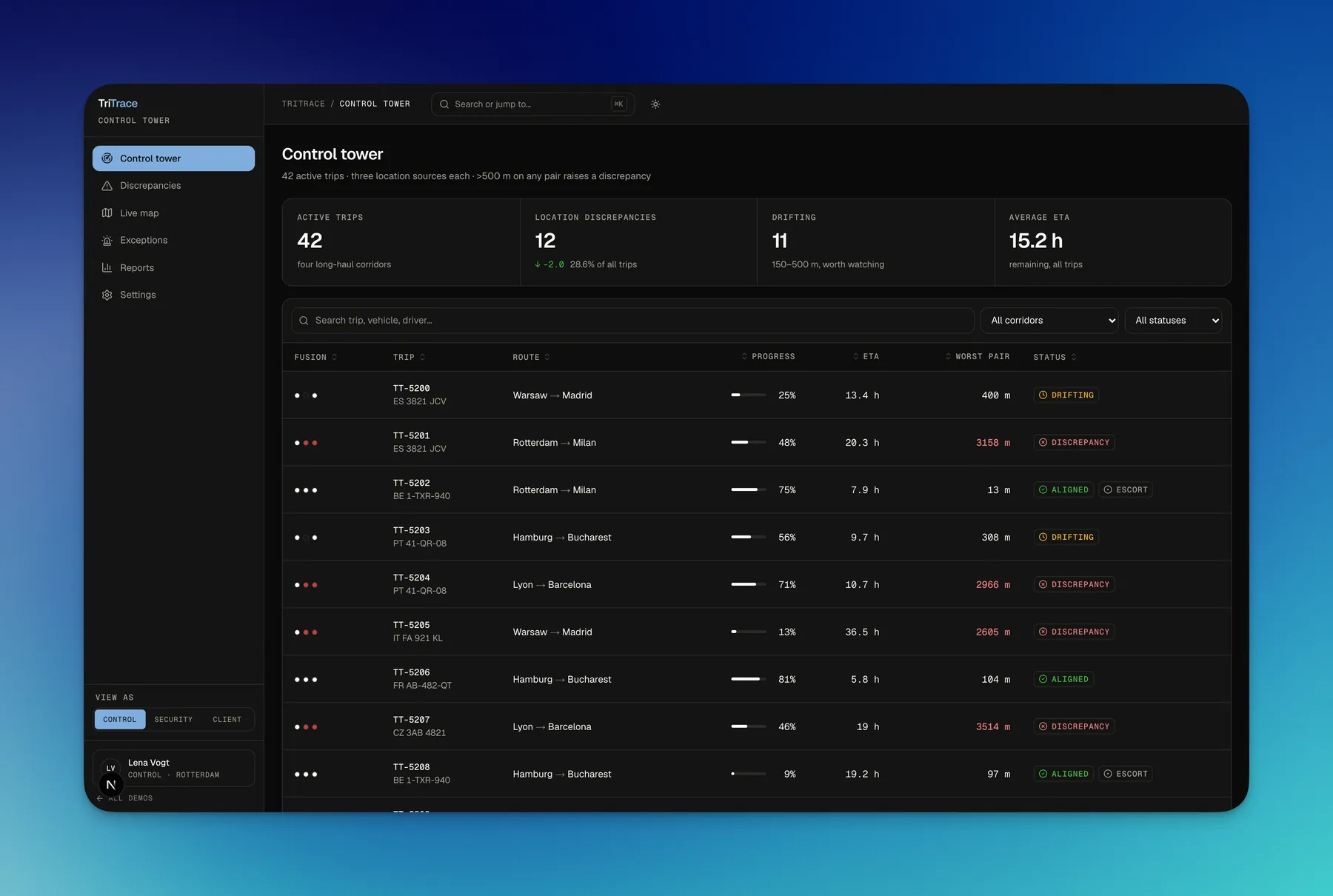

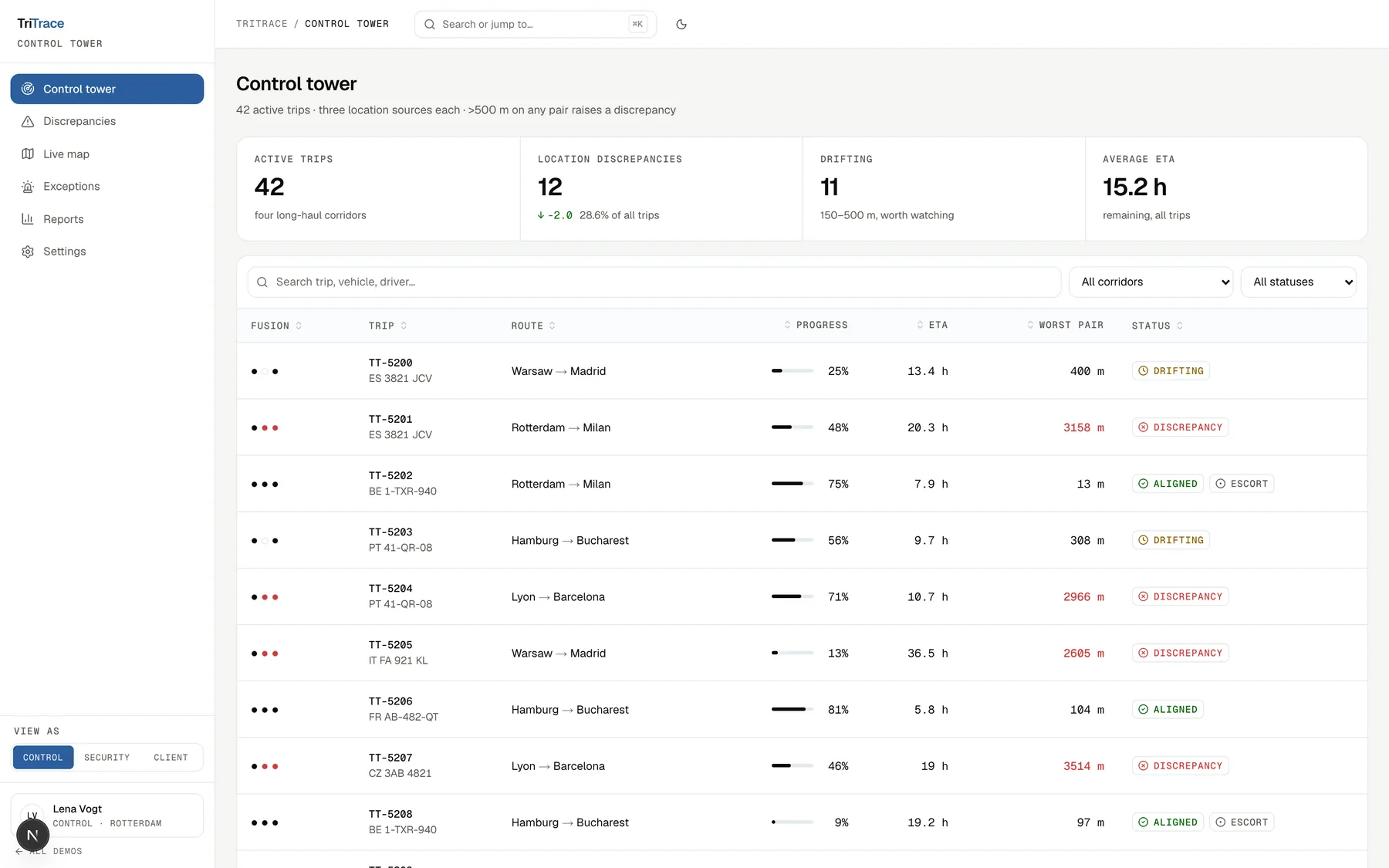

Every trip carries Truck GPS, Driver SIM and E-Lock. When any pair diverges by more than 500 metres the trip raises a Location Discrepancy, and the control tower sees exact deltas per pair alongside a probable cause. The 500-metre threshold is deliberately not configurable — making it a slider would let a bad week be configured away.
Specifications
USE CASE
Multi-source location assurance on long-haul corridors
WORKFLOW
Ingest, fuse, detect, explain, resolve
OUTPUT
Per-pair divergence in metres plus a probable cause and a trip summary
SECURITY
Escort tagging, security escalation path, full resolution audit
Features
- 01Three-dot fusion indicator readable without colour — aligned, drifting, discrepancy
- 02Toggleable source markers on a real projected map of the corridor
- 03Exact pairwise deltas in metres for SIM↔GPS, SIM↔Lock and GPS↔Lock
- 04Probable cause with the evidence behind it, resolvable or escalatable
- 05Resolution reason codes recorded against the person who chose them
Architecture
TRITRACE PIPELINE
────────────────────────────────────────────
┌───────────┐ ┌────────────┐ ┌────────┐
│ Truck GPS │ │ Driver SIM │ │ E-Lock │
└───────────┘ └────────────┘ └────────┘
↓
╭┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈╮
┊ Location fusion engine ┊
╰┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈╯
↓
╭┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈╮
┊ Discrepancy detector — >500 m ┊
╰┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈╯
↓
╭┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈╮
┊ Probable cause + trip summary ┊
╰┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈┈╯
↓
┌───────────────┐
│ Control tower │
└───────────────┘
╭┈┈╮ dashed = model step ┌──┐ deterministic stepWhat it will not do
Every screen carries one honest failure record with its recovery path. This is the one buyers remember. A run closed a 1.4 km divergence as GPS multipath. The vehicle had genuinely left the corridor — the lock and SIM had moved with it, and only the GPS looked normal because it was the stale source. Auto-closing is now limited to cases where the majority of sources agree. A second run declined to write a trip summary while the e-lock had been silent for three hours; the trip shows an explicit source-offline state rather than a confident paragraph.
